AV Out

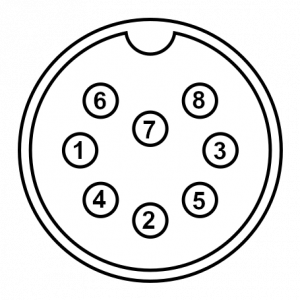

Note: Connector is the female end at the console.
| Pin # | Description |
|---|---|
| 1 | Audio Out |
| 2 | Ground |
| 3 | 5V |
| 4 | 5V (AV/RGB Signal Select) |
| 5 | Composite Sync |
| 6 | Green |
| 7 | Blue |
| 8 | Red |
