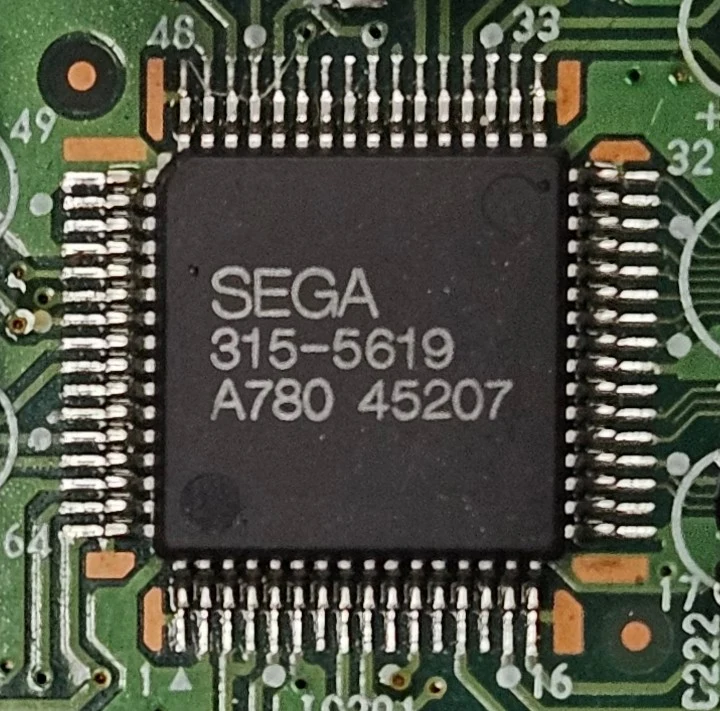

Late in the life of the Sega CD, Sega consolidated the two DACs and audio op-amps into a single chip labeled as 315-5619. It is utilized in all CDX systems, the Aiwa Mega CD, and some very late Funai-made model 2 Sega CD systems.
It replaces the Sanyo LC7883 (CDDA DAC), Sanyo LC7881 (PCM DAC), both NJM3403 quad op-amps and the NJM3404 dual op-amp. However, it is unknown what the performance characteristics of the integrated op-amps are.
The pinout here is traced from a late Funai Sega CD model 2, CDX may differ with regards to pins used, as a result, the exact pinout may not be 100% correct, particularly pins 3, 4, 7, 8, 12, 18 , 23 and 37.
Op-amps 1 and 2 are wired in a Sallen-Key configuration, which results in pins 3 and 4, along with 7 and 8 being shorted on the motherboard, with no way to distinguish which is the output, and which is the inverting terminal of the amp.
| Pin | Description | Pin | Description | Pin | Description | Pin | Description |
|---|---|---|---|---|---|---|---|
| 1 | opamp 8 + | 17 | GND | 33 | VREFH 1 | 49 | GND |
| 2 | GND | 18 | unknown/NC | 34 | VREFH | 50 | opamp 5 - |
| 3 | opamp1 - or out | 19 | /ERES | 35 | VREFH 2 | 51 | opamp 5 out |
| 4 | opamp 1 - or out | 20 | BCLK | 36 | CDDA CH1 | 52 | GND |
| 5 | opamp 1 + | 21 | LRCK | 37 | to R201 | 53 | opamp 6 + |
| 6 | GND | 22 | DFCK | 38 | CDDA CH2 | 54 | opamp 6 - |
| 7 | opamp 2 - or out | 23 | unknown/NC | 39 | GND | 55 | opamp 6 out |
| 8 | opamp 2 - or out | 24 | VCC | 40 | opamp 3 + | 56 | VCC/GND, unknown |
| 9 | opamp 2 + | 25 | DDATA | 41 | opamp 3 - | 57 | VREF |
| 10 | GND | 26 | ATT | 42 | opamp 3 out | 58 | VCC/GND, unknown |
| 11 | PCM CH2 | 27 | SHFT | 43 | GND | 59 | opamp 7 out |
| 12 | to R202 | 28 | LATCH | 44 | opamp 4 + | 60 | opamp 7 - |
| 13 | PCM CH1 | 29 | PDATA | 45 | opamp 4 - | 61 | opamp 7 + |
| 14 | VREFL 2 | 30 | PWCLK | 46 | opamp out | 62 | GND |
| 15 | VREFL | 31 | PBCLK | 47 | GND | 63 | opamp 8 out |
| 16 | VREFL 1 | 32 | PLRCK | 48 | opamp 5 + | 64 | opamp 8 - |
In the Sega CD model 2, the op-amps match the schematic as follows, the CDX may differ:
IC205A and IC205B have been integrated entirely within 315-5619, and no longer exist.
| op-amp | Replaces: |
|---|---|
| 1 | IC203C |
| 2 | IC203B |
| 3 | IC203A |
| 4 | IC203D |
| 5 | IC204A |
| 6 | IC204B |
| 7 | IC204D |
| 8 | IC204C |
