Video Output Comparison

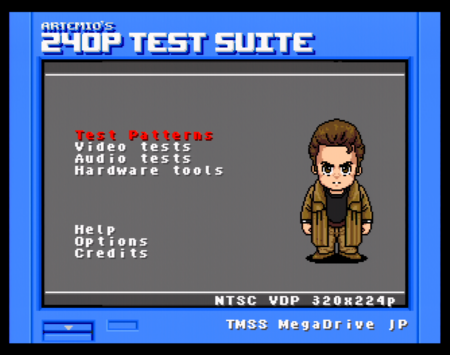

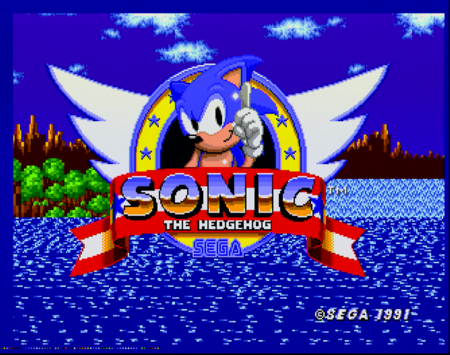

All captures were made using a RetroTINK-5X Pro on default settings (except where noted), along with the 240p Test Suite and Sonic the Hedgehog as test carts. For composite, the 320x224 color bleed test was used to show the quality of each…

3 min readUpdated Oct 9, 2026

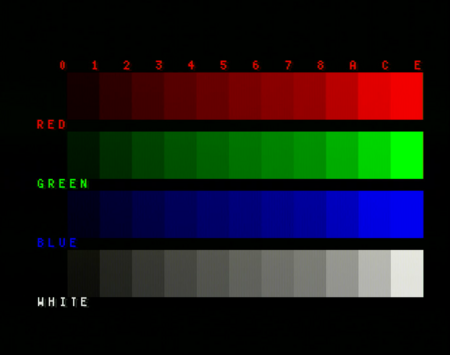

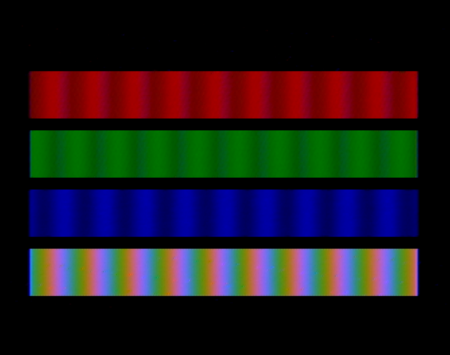

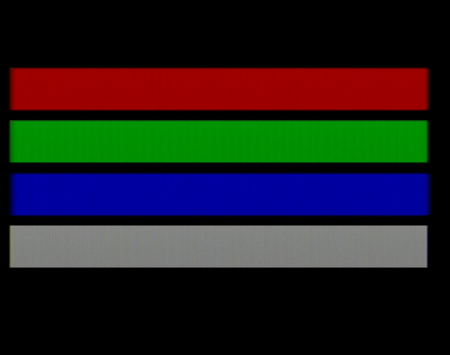

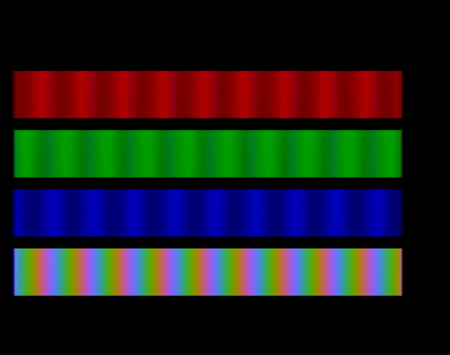

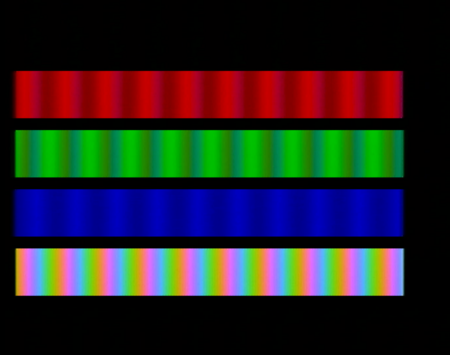

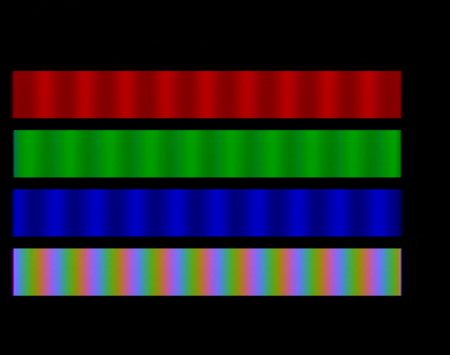

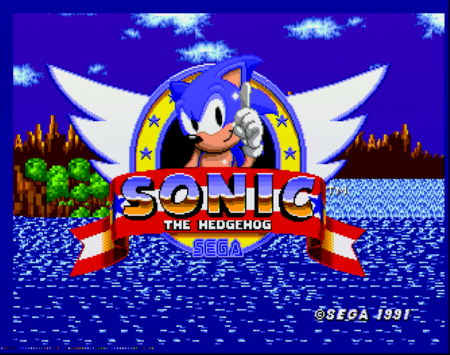

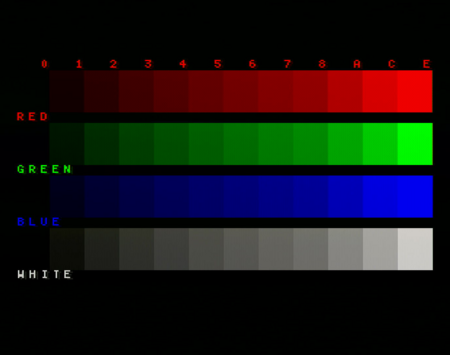

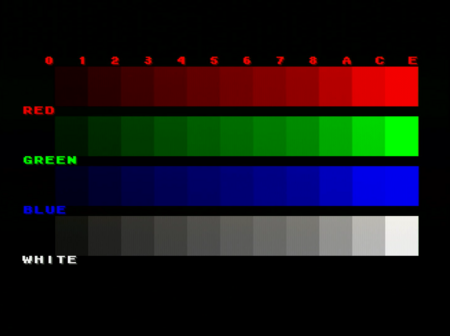

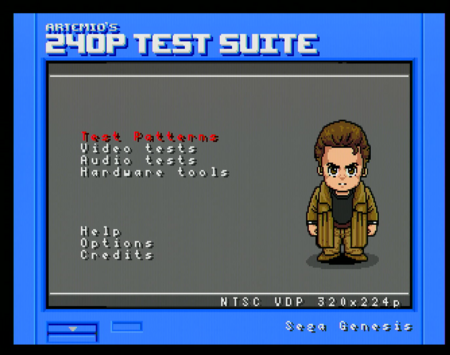

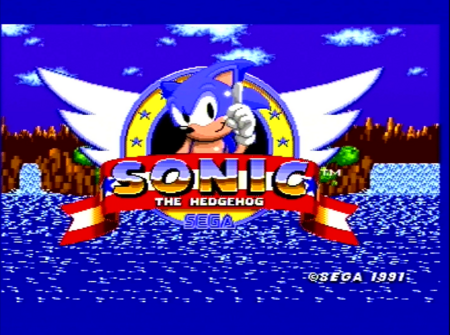

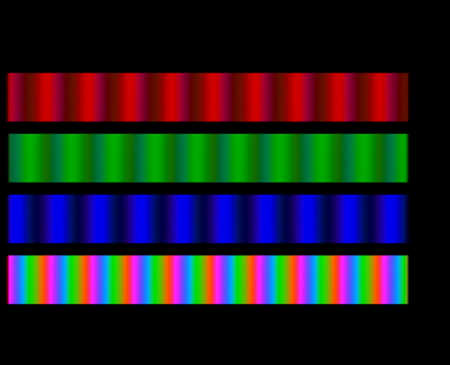

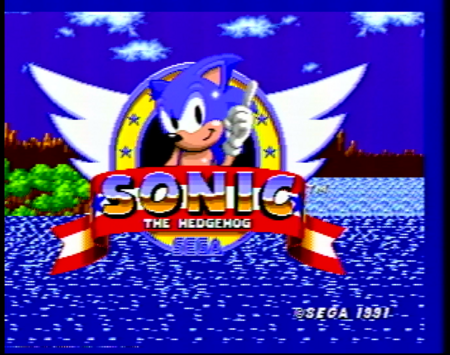

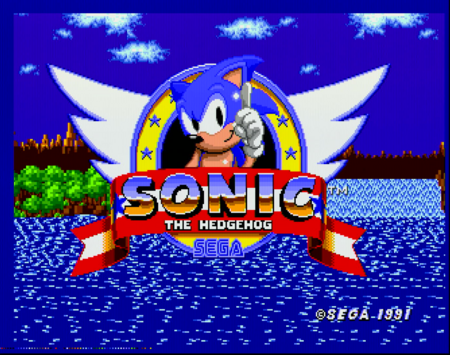

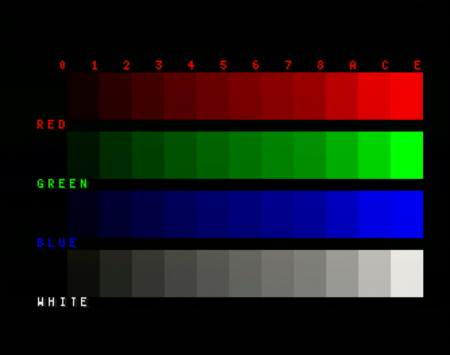

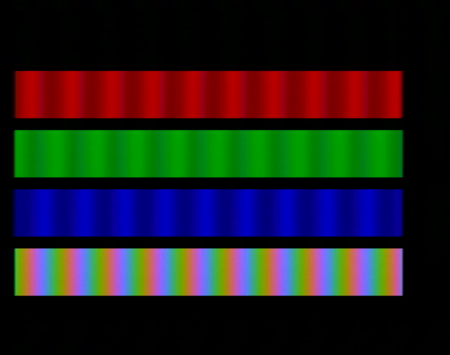

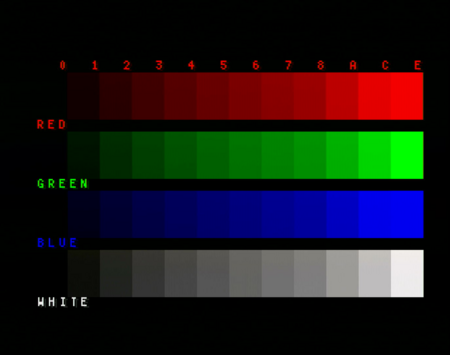

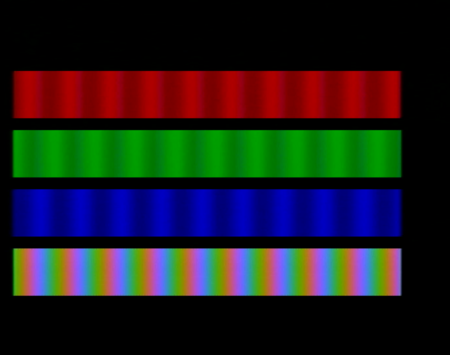

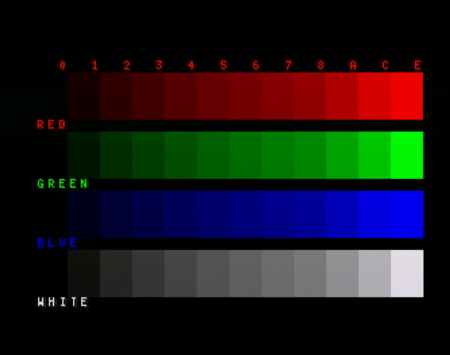

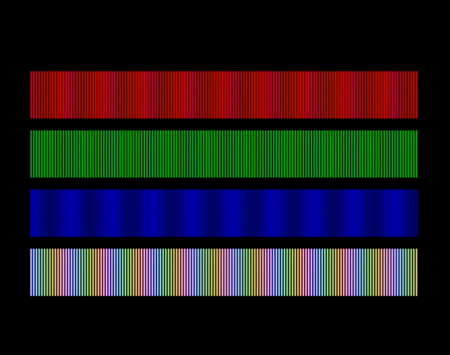

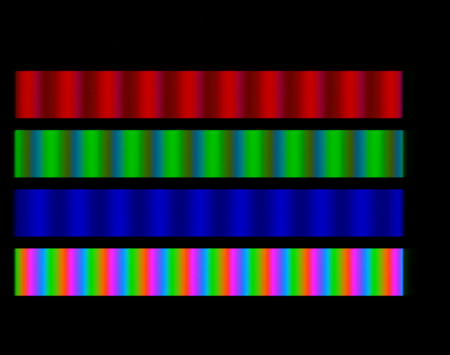

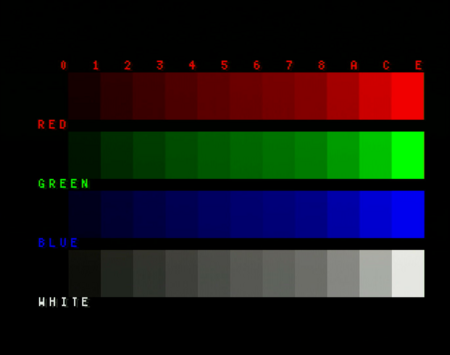

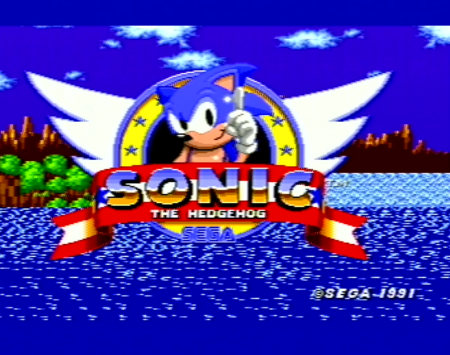

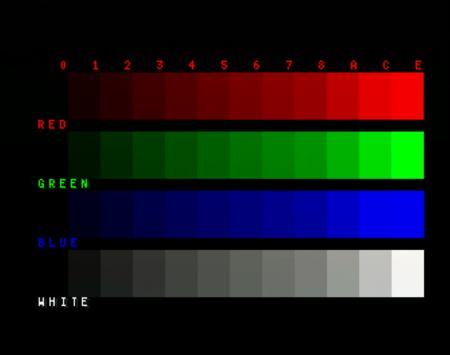

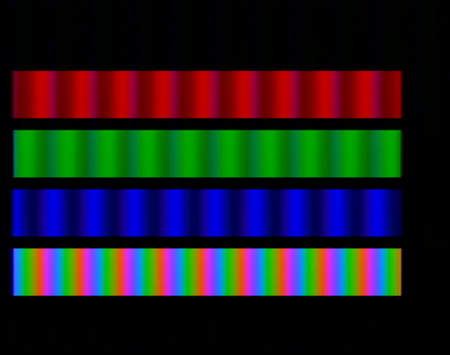

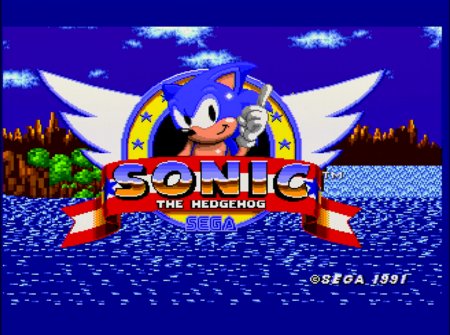

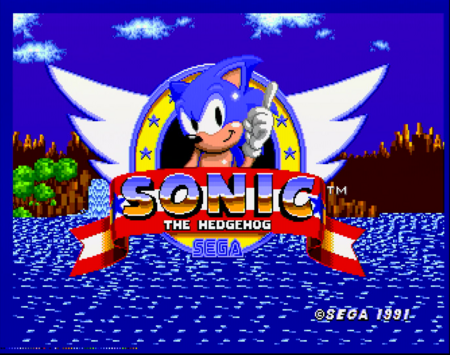

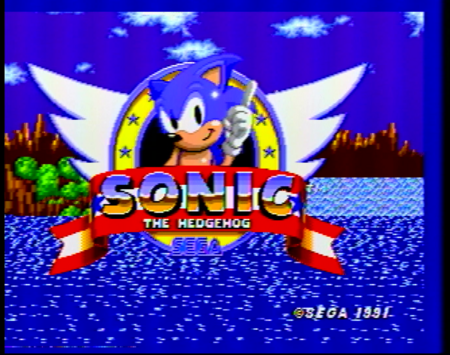

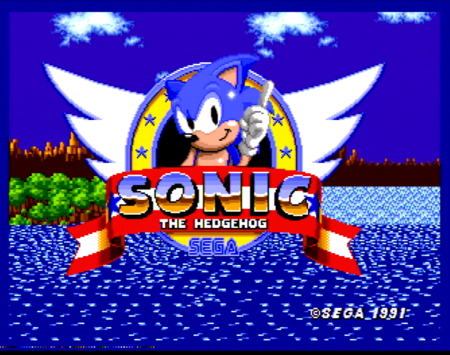

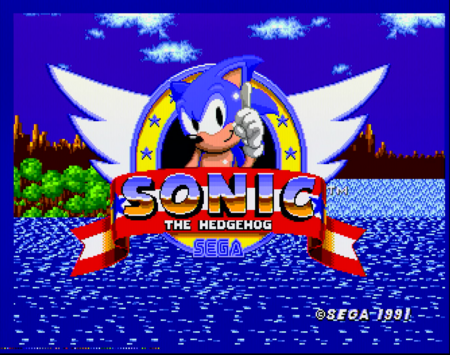

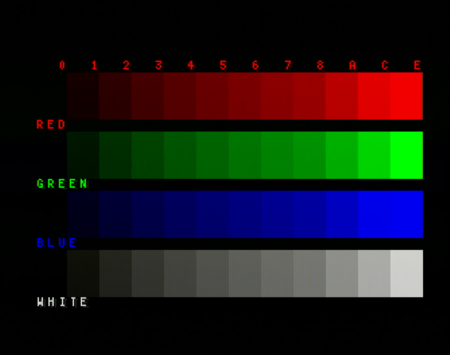

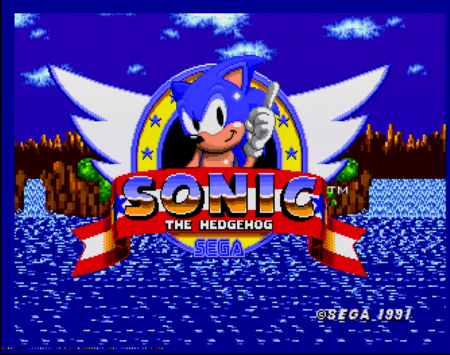

All captures were made using a RetroTINK-5X Pro on default settings (except where noted), along with the 240p Test Suite and Sonic the Hedgehog as test carts. For composite, the 320x224 color bleed test was used to show the quality of each console's composite output. This displays alternating columns of color and black that are each a pixel wide. The color bar test was used to help reveal the presence of jailbars in each console's RGB output.

For more background information, check out the Motherboard Differences and Video Output Notes pages.

Model 1

All model 1s tested have a Sony CXA1145 video encoder, which is standard for all model 1 consoles except the VA6.8 revision.

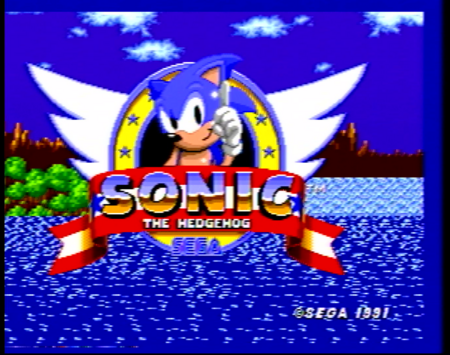

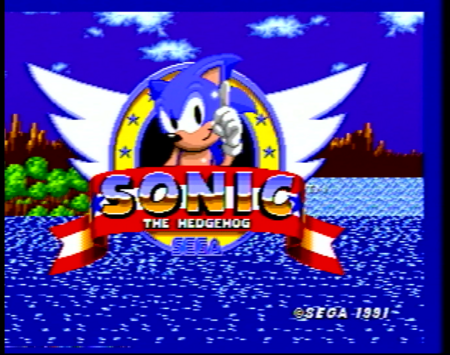

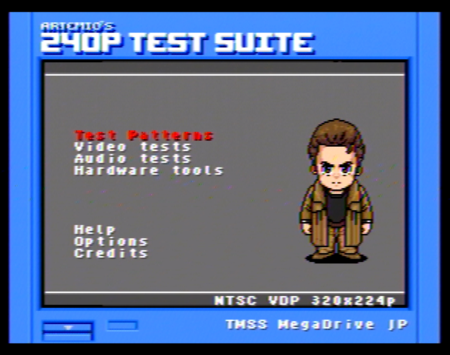

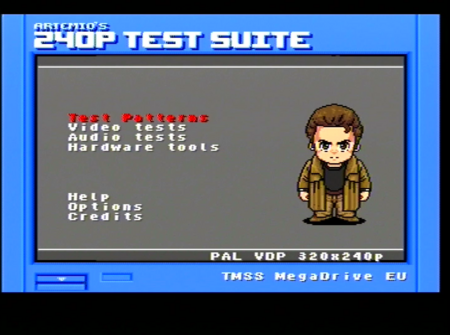

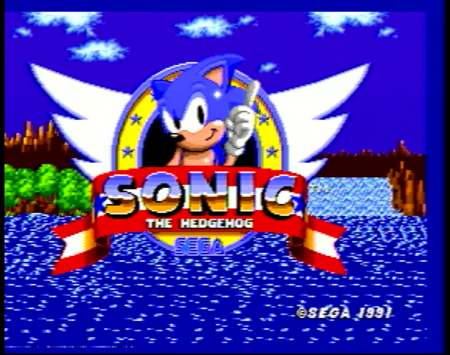

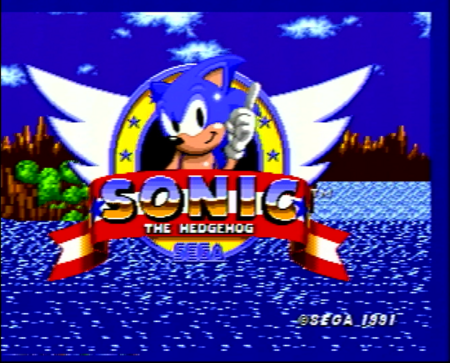

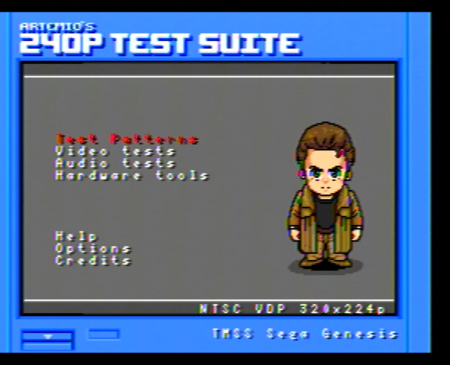

Composite

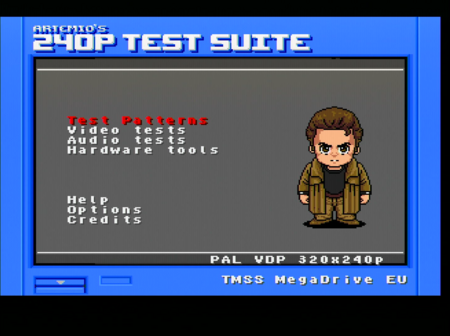

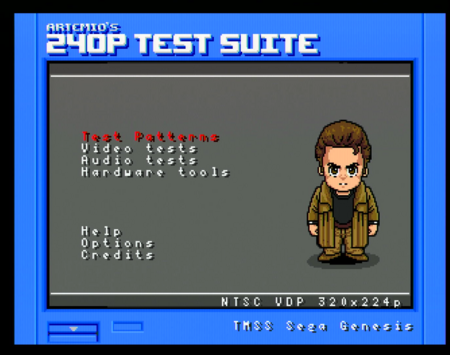

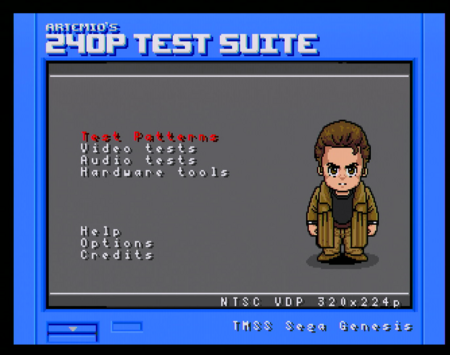

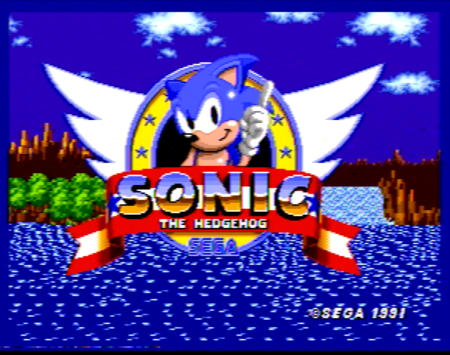

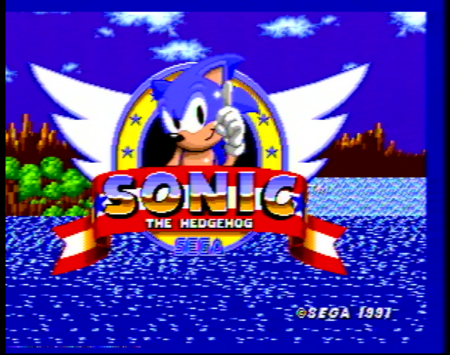

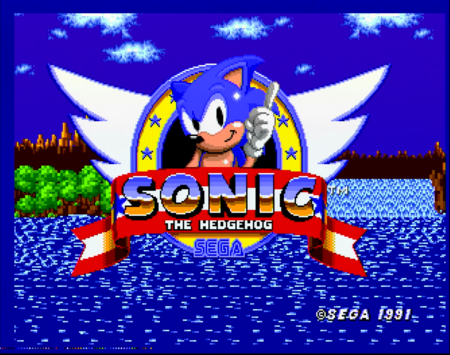

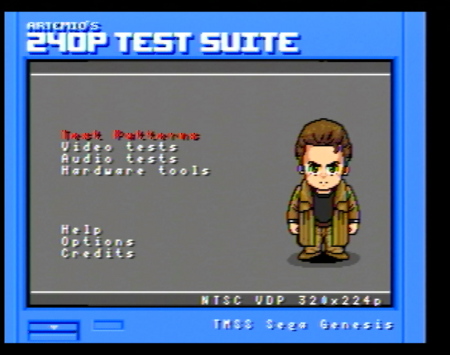

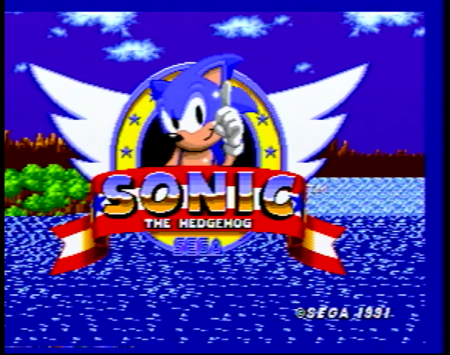

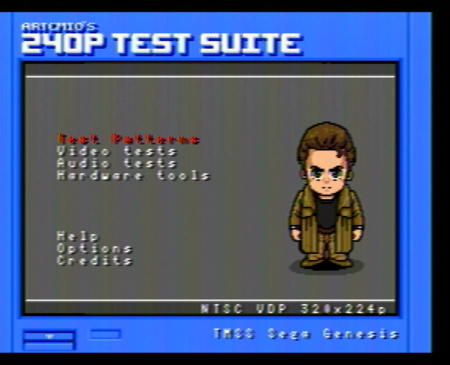

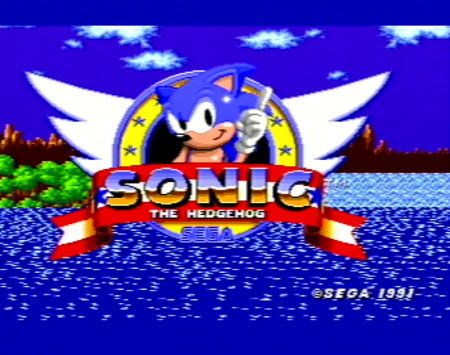

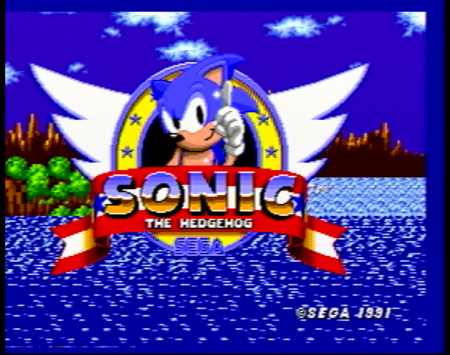

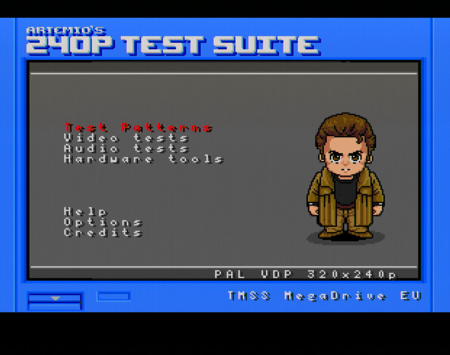

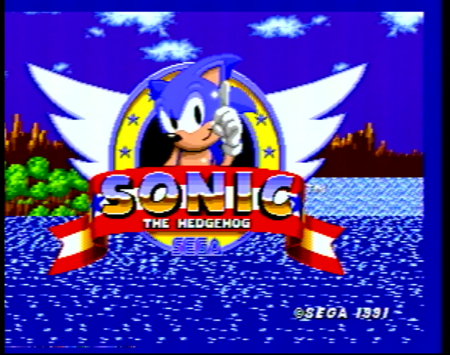

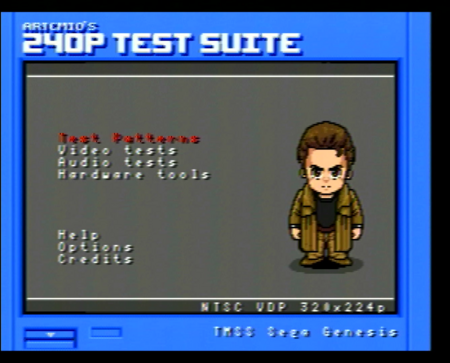

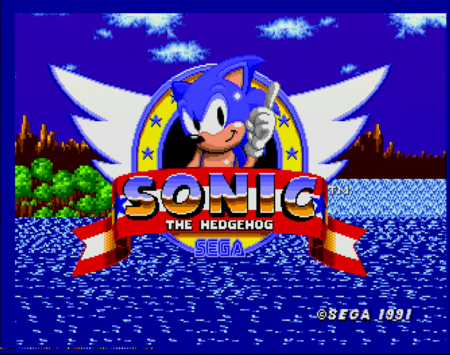

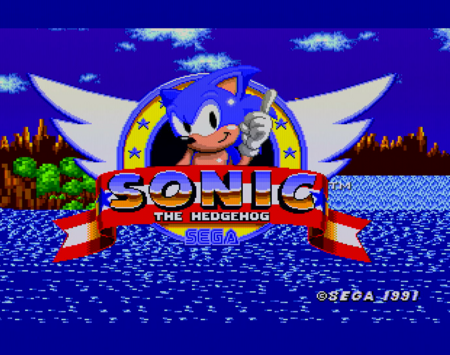

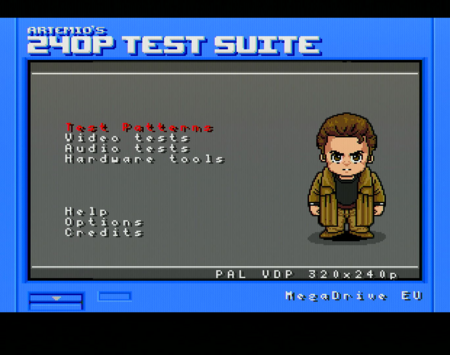

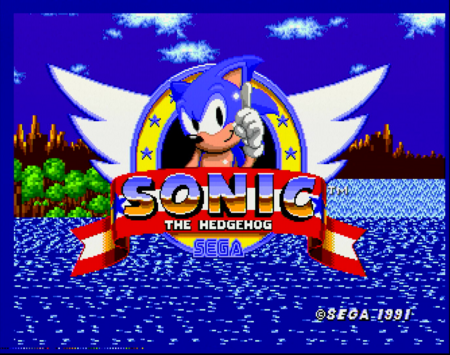

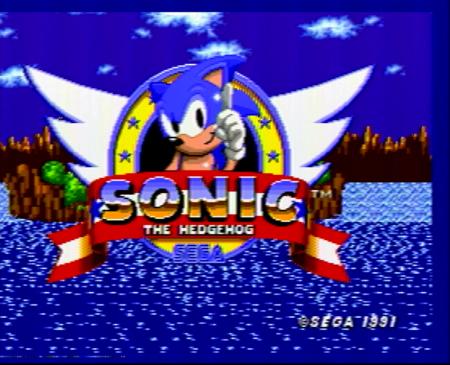

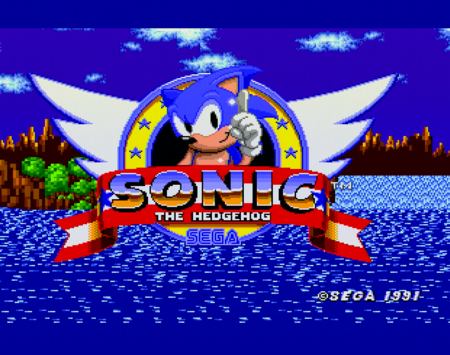

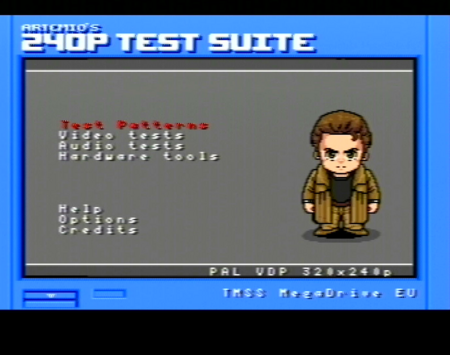

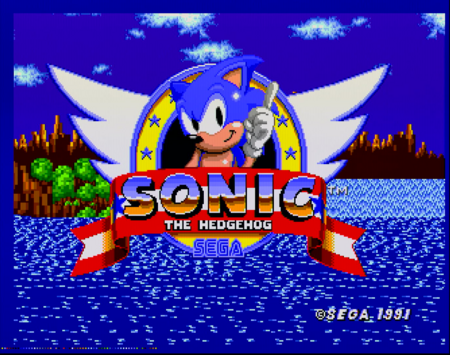

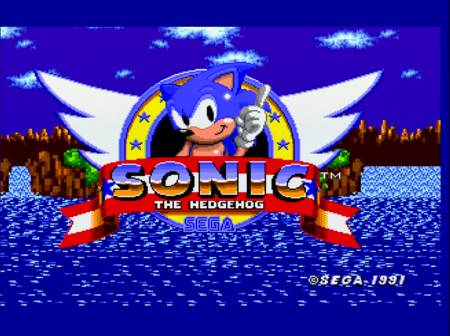

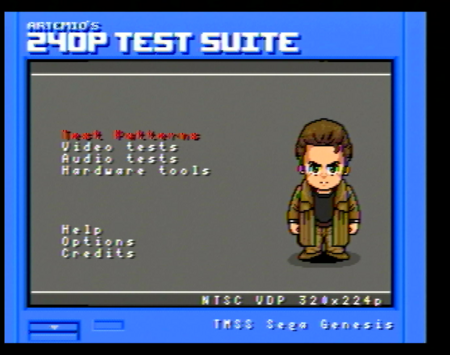

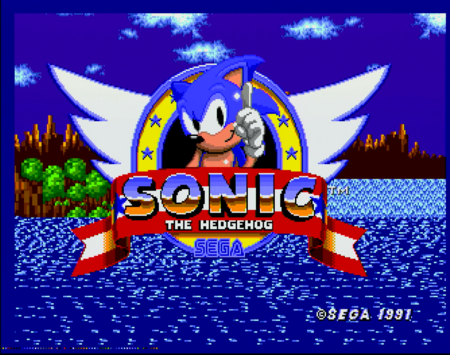

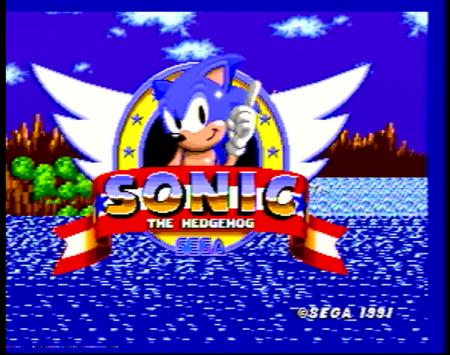

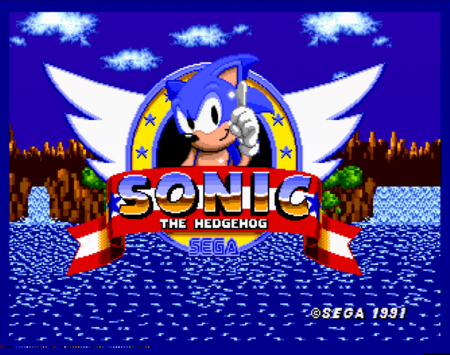

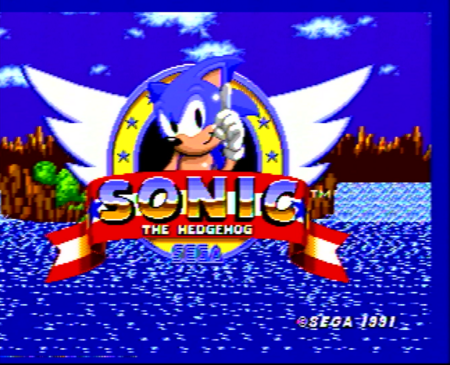

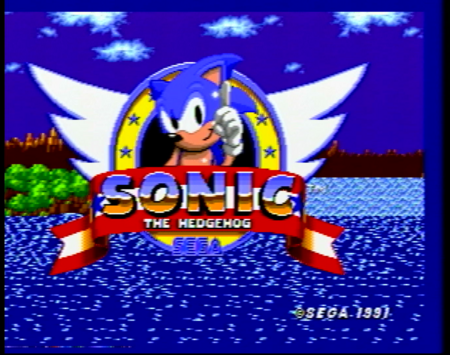

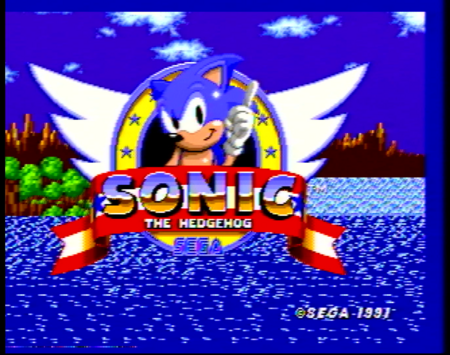

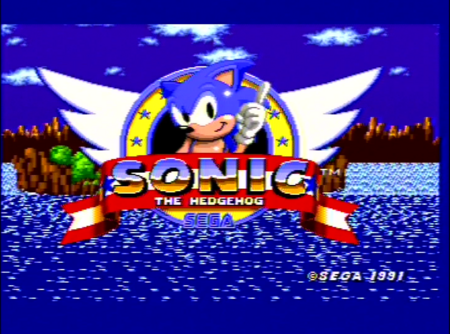

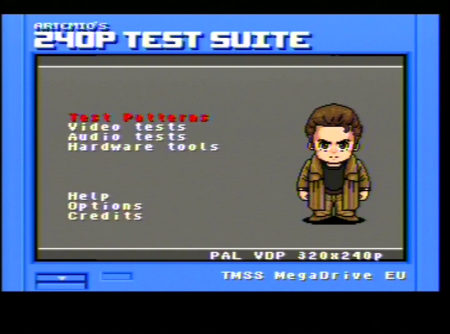

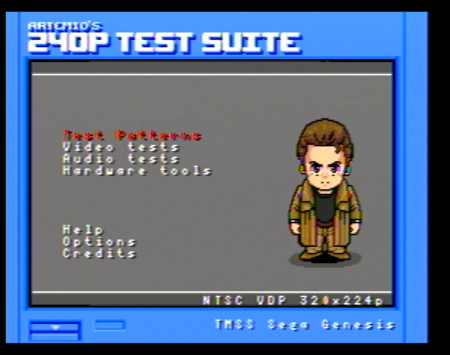

Board Revision 240p Test Suite Menu 320px Color Bleed Sonic 1 Title Screen Notes
JP "VA0"
 Recapped
JP VA2
 Recapped
US VA2
 Recapped
US VA3
 Recapped
JP VA4

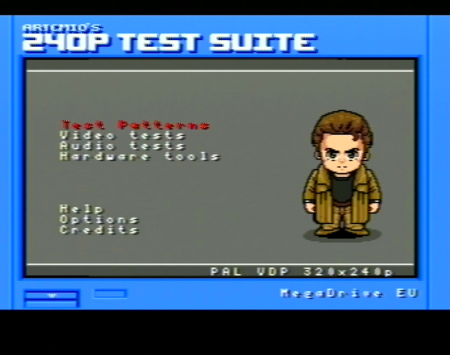

PAL VA4
JP VA5
US VA6
 Recapped
US VA6 (Quadruple Bypass)
 This modification was performed on the same console used for the above screenshots
US VA6.5
PAL VA6.5
 Recapped
US VA7

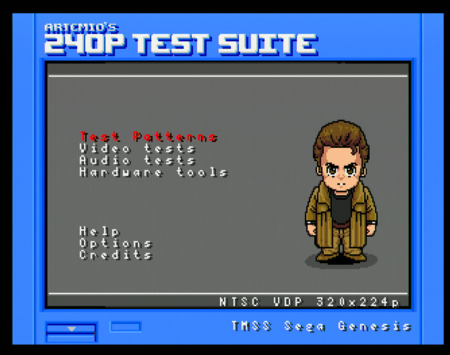

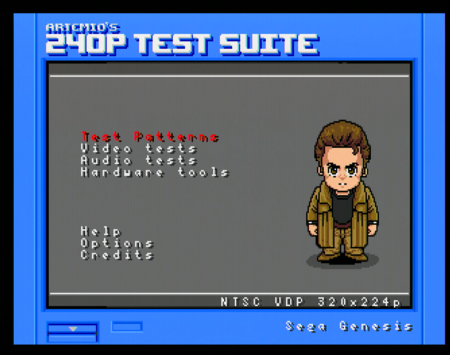

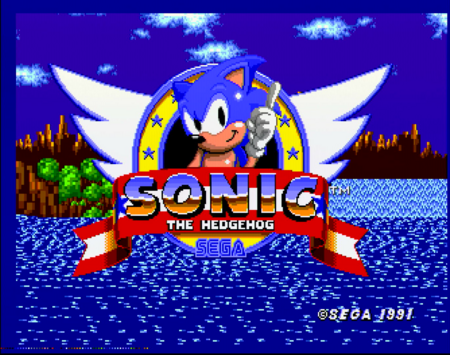

RGB

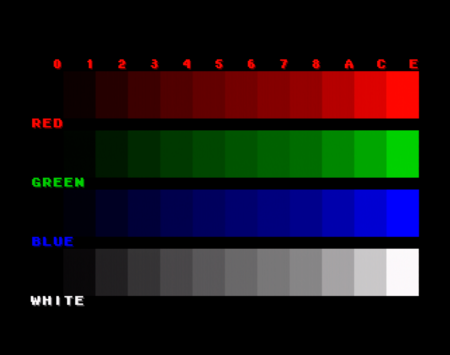

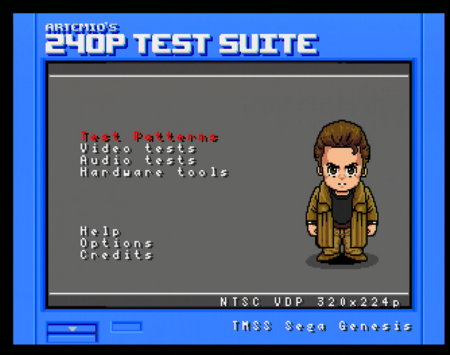

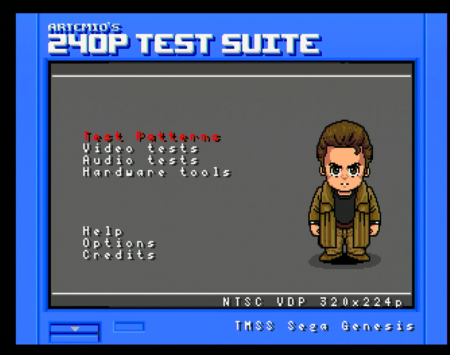

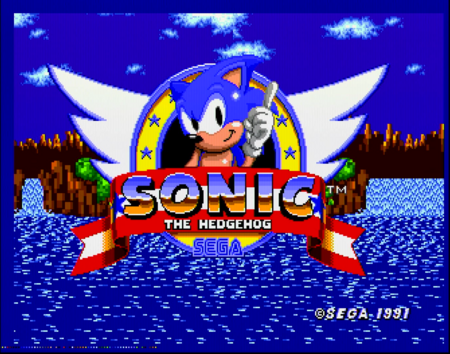

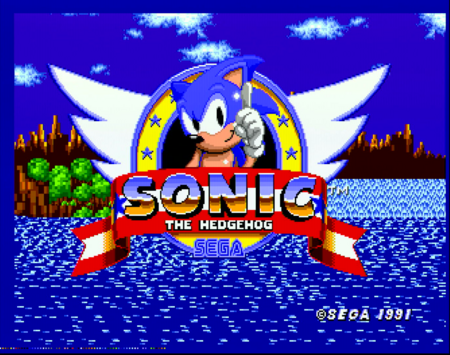

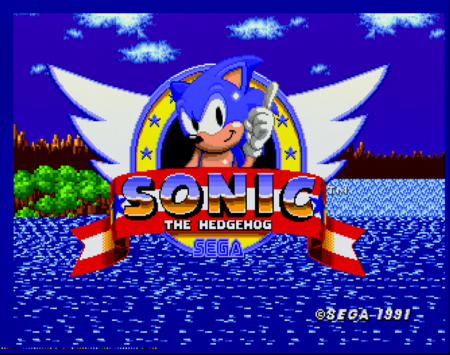

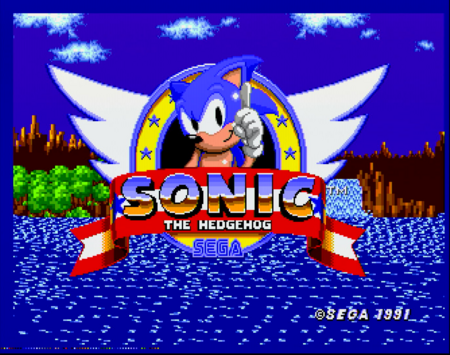

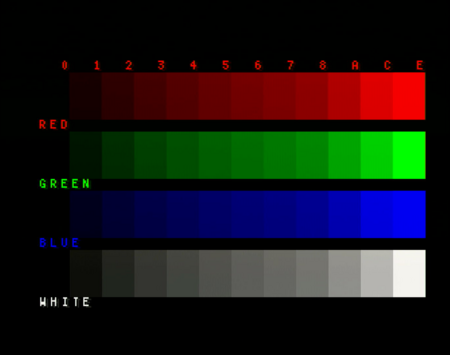

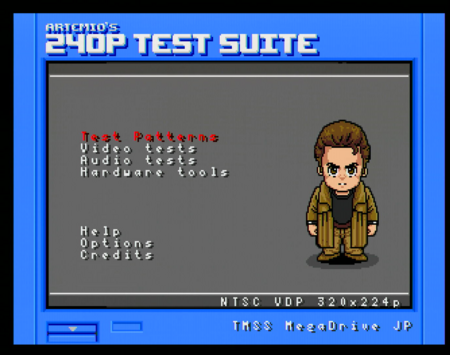

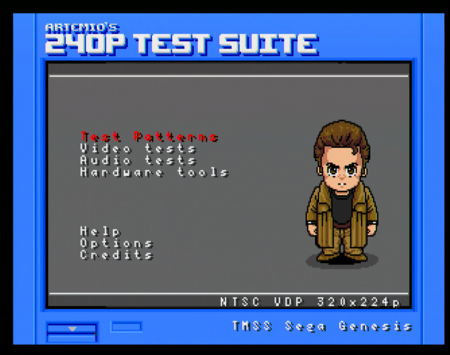

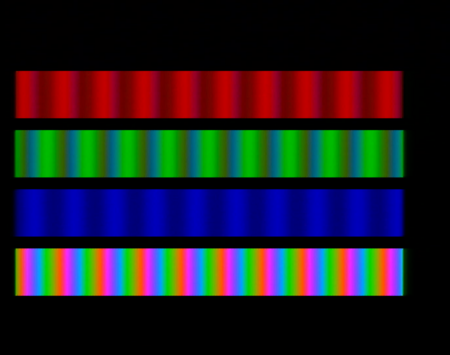

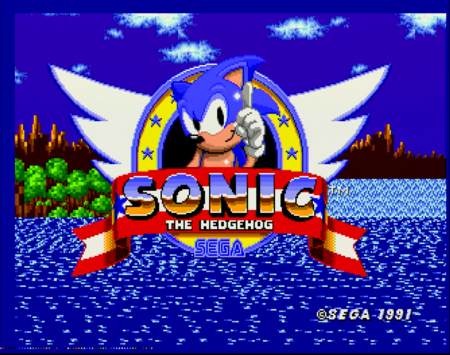

Board Revision 240p Test Suite Menu Color Bars Sonic 1 Title Screen Notes
JP "VA0"
 Recapped
JP VA2
 Recapped
US VA2
 Recapped
US VA3
 Recapped
JP VA4
PAL VA4
JP VA5
US VA6
 Recapped
US VA6 (Quadruple Bypass)
 This modification was performed on the same console used for the above screenshots
US VA6.5
PAL VA6.5
 Recapped
US VA7 (stock)
US VA7 (Triple Bypass v0.3)

Model 2

Composite

Board Revision Video Encoder 240p Test Suite Menu 320px Color Bleed Sonic 1 Title Screen
US VA0 Samsung KA2195D
US VA0 Sony CXA1145
JP VA0 Fujitsu MB3514
PAL VA0 Fujitsu MB3514
US VA1 Samsung KA2195D
US VA1.8 Fujitsu MB3514
US VA2 Samsung KA2195D
US VA2 Sony CXA1645
US VA2.3 Sony CXA1645
US VA3 Samsung KA2195D
US VA3 Sony CXA1145
US VA3 Sony CXA1645
US VA4 Sony CXA1645
Asian VA4 Sony CXA1645

RGB

Board Revision Video Encoder 240p Test Suite Menu Color Bars Sonic 1 Title Screen
US VA0 Samsung KA2195D
US VA0 Sony CXA1145
JP VA0 Fujitsu MB3514
PAL VA0 Fujitsu MB3514
US VA1 Samsung KA2195D
US VA1.8 Fujitsu MB3514
US VA2 Samsung KA2195D
US VA2 Sony CXA1645
US VA2.3 Sony CXA1645
US VA3 Samsung KA2195D
US VA3 Sony CXA1145
US VA3 Sony CXA1645
US VA4 Sony CXA1645
Asian VA4 Sony CXA1645

Others

Composite

Console Video Encoder 240p Test Suite Menu 320px Color Bleed Sonic 1 Title Screen Notes
Genesis 3 VA1 Sony CXA1645
Genesis 3 VA2 Sony CXA1645
JVC X'Eye Sony CXA1145
Genesis CDX Fujitsu MB3514
Mega Jet Sony CXA1145
Victor RG-M1 Sony CXA1145
 RetroTink 4K Pro (Default Profile)

RGB

Console Video Encoder 240p Test Suite Menu Color Bars Sonic 1 Title Screen Notes
Genesis 3 VA1
(Triple Bypass v2)		 Sony CXA1645
Genesis 3 VA2 Sony CXA1645
JVC X'Eye Sony CXA1145
Genesis CDX Fujitsu MB3514
Mega Jet Sony CXA1145
Victor RG-M1
(RGB Mod)		 Sony CXA1145
(Bypassed)
 RetroTink 4K Pro (Default Profile)

S-Video

Console Video Encoder 240p Test Suite Menu 320px Color Bleed Color Bars Sonic 1 Title Screen Notes
Victor RG-M1 Sony CXA1145
 RetroTink 4K Pro (Default Profile)
