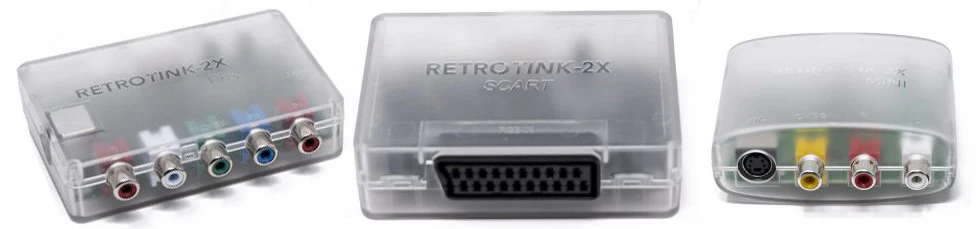

The RetroTINK-2X line of products are zero-lag, 480p HDMI line doublers for retro game consoles. Here's the different models available:
RetroTINK-2X Mini: An entry-level scaler; supporting composite and S-Video inputs. Original manual: RT2X-MINI_Manual.pdf.
RetroTINK-2X Pro: An updated version of the original 2X with more features, including scanlines. Original manual: RT2X-Pro-Manual.pdf.
Dedicated wiki page: RetroTINK-2X Pro
RetroTINK-2X SCART: A simple RGB SCART line doubler that outputs 480p HDMI.
Discontinued RetroTINK-2X Multiformat. No longer supported by RetroTINK LLC / Mike Chi. Unsupported Firmware upgrades can be found here: 2X Multiformat Firmware Wiki
The RetroTINK-2X Multiformat 1.0 Manual can be downloaded Here.
Discontinued Original RetroTINK-2X
A complete list of RetroTINK line-doublers and scalers can be found on the RetroTINK overview wiki page.
The 2X-Pro supports 15 kHz input only

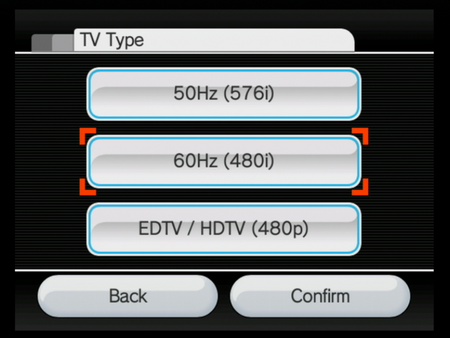

The 2X-Pro as well as the 2X-MINI support 15 kHz input only. This means that 240p, 480i for 60 Hz NTSC and 288p, 576i for 50Hz PAL are supported. 480p input from consoles like the Gamecube, Wii or Xbox are not supported. The only 2X product that accepts 480p input is the (discontinued) 2X-Pro Multiformat.

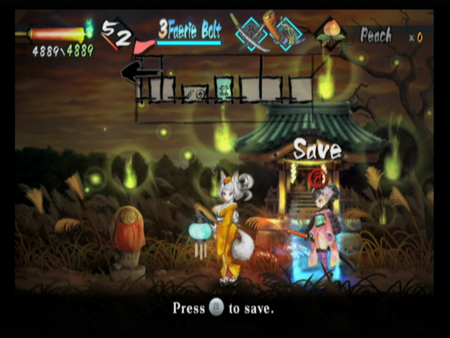

For consoles that use 480p for most of their catalogue you can get better picture quality with a 480p capable product like the RetroTINK-5X Pro or a YPbPr to HDMI transcoder that supports 480p input. There are also console specific solutions. For example GCVideo HDMI adapters like the Carby for Gamecube or the ElectronWarp HDMI adapter for Wii.

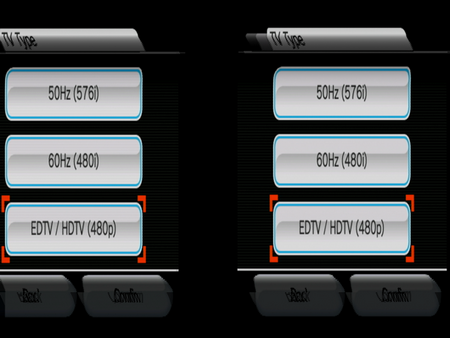

| The RetroTINK 2X-Pro is not compatible with 480p input | |
|---|---|
  |
  |
PAL N64 using an NTSC S-Video Cable
PAL (European / Australian) N64 consoles usually require a special S-Video cable, that has additional resistors built in, to bring its overly hot video signal down to normal levels. Connecting a PAL N64 with a standard NTSC S-Video cable to a 2X-Pro results in clipping of bright colors. The 2X-MINI can display S-Video from a PAL N64 at the correct brightness level with a standard NTSC S-Video cable.
Note that not all PAL N64 output S-Video. PAL Funtastic and Pikachu models as well as French consoles may be limited to composite video.

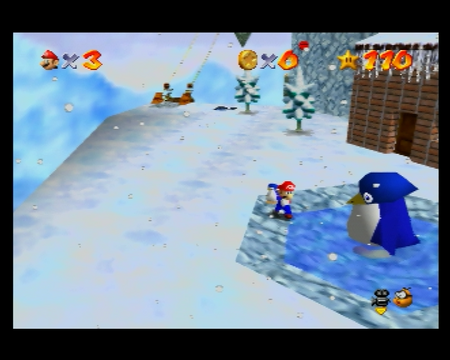

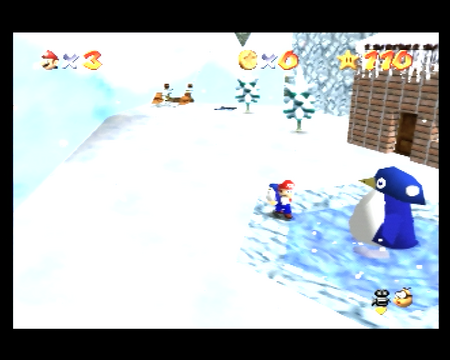

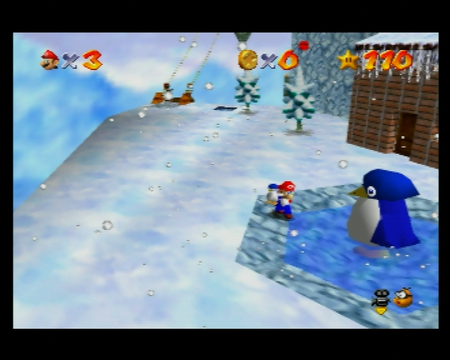

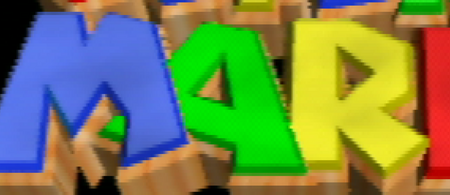

| PAL N64 with NTSC S-Video Cable Comparison | ||
|---|---|---|
 |
 |
 |
2X-MINI High Frequency Luma Filter
The 2X-MINI applies a high frequency luma filter to its S-Video input when the COMB switch is set to "Auto". This is mostly helpful for PAL N64, but it can also reduce noise when using lower quality S-Video cables with other consoles.

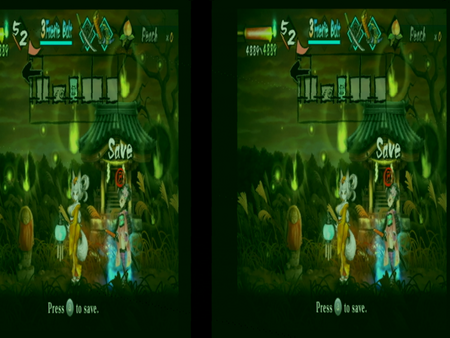

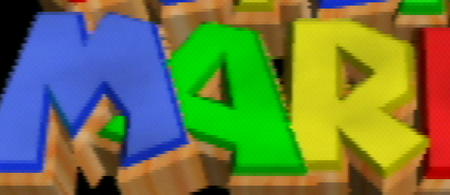

| High Frequency Luma Filter Example | |
|---|---|
 |
 |
2X Video Product Launches / Reviews
Reviews and Video Explanations of the RetroTINK 2X products:
|
RetroTINK 2x Pro: Classic Consoles on Flat-Panel TV's |
RetroTINK-2X Mini | |
|---|---|---|
|
RetroTINK-2X SCART |
RetroTINK-2X Classic (discontinued) |
RetroTINK-2X Classic 3d Printed Case
The RetroTINK-2X (discontinued) is barebone and the look doesn't appeal to everyone. A custom case for the RetroTINK-2X Classic has been created as an alternative by Laser Bear Industries.
Download the 3D-Printable Files Here:
As an FYI, all of Greg's designs can be purchased from his web store here:

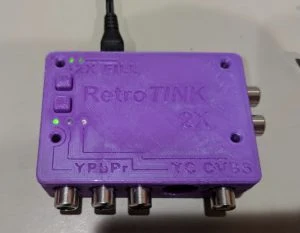

The RetroTINK-2X Case consists of a few 3d Printed parts:
RetroTINK Bottom V1.4.stl RetroTINK Top V1.4.stl RetroTINK Buttom.stl (print two of these)
You will also need some extra items to complete the setup.
- 4x M3x20mm flat head machine screws
- some translucent 1.75mm filament (optional for light pipes)
The only part that might be a little bit difficult is installing the light pipes, which you can use a pair of pliers and push the filament through the led holes and use flush cutters to get it to set flat with the rest of the case. Then, you can use a hot air rework gun to get the clear filament to be clear on the ends that were cut.
The case will assemble with the original 3mm nuts from the RetroTINK-2X Classic plexy case and the 3mm screws you obtained. The RetroTINK-2X Classic board will just go inside before you screw it all together.
Click here to check out some more free 3D printed design files.
fix this link once 3d printed designs are integrated
Rad 2x Cables

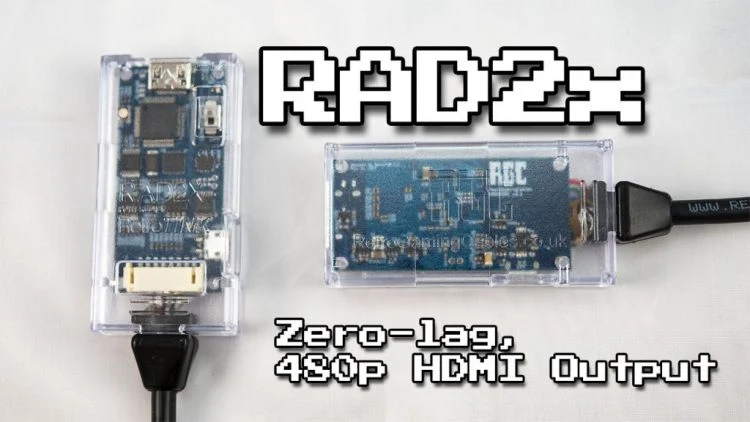

The "Retro Analog to Digital 2x" cables, aka the "RAD2x" are retro HDMI cables supporting most consoles before the Xbox, PS3 and Wii. They are zero lag devices that process the unique "240p" signals of classic consoles properly. They include a switchable filter that smooths out the graphics, which can improve the look for early 3D games and for softening 480i games.
Main RAD2x Sale Page: https://www.retrogamingcables.co.uk/RAD2X-CABLES
Rad 2x Cable Videos
Videos that detail each version of the RAD2x:
|
Intro To RAD2x |
Intro To Nintendo Rad2x |
|---|---|
|
RAD2x PlayStation |
RAD2x: Genesis 2 |
|
RAD2x + mClassic Sega Saturn |
Firmware Updates
RetroTINK products evolve after their release, and if you'd like the newest features and bugfixes you'll need to keep the firmware up-to-date. Also, visit the Discord Server and check the experimental channel for latest firmware. Below are videos to show the update process on multiple OS's:
|
Windows Firmware Update |
Mac / Linux Firmware Update |
|---|
Lag Testing

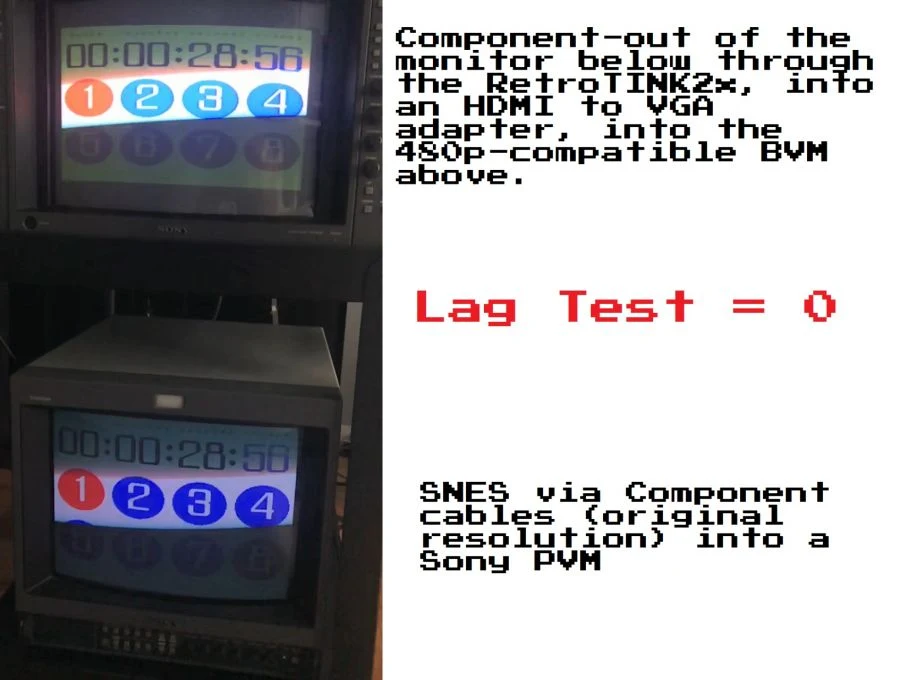

Every RetroTINK is a zero (or near zero) lag device, which have been proven using measurement methods across different devices. Detailed information and examples can be found here but for quick visual proof, check out the photo below:
