AM-3501R
| Information | ||
|---|---|---|
| Manufacturer | Mitsubishi | |
| Type | Presentation | |
| Size | 35" | |
| Dot Pitch | 1.0mm | |
| Regions | NTSC, PAL, SECAM | |
| 240p/480i | Yes | |
| 480p | Yes | |
| 720p | No | |
| 1080i | No | |
| Vsync | 50/60hz | |
| Widescreen | No | |
| Composite | 2x | |
| S-Video | 2x | |
| Component | 2x RGB, 1x TTL RGB | |
| Dimensions | Width: 33 7/8 in
Depth: 21 5/8 in Height: 27 in | |
| Weight | 240 lb, 6 oz | |
| Links | ||
| Service Manual | AM-3501R Service Manual AM-3501R Technical Schematics |
|
Description
Useful Links
Media

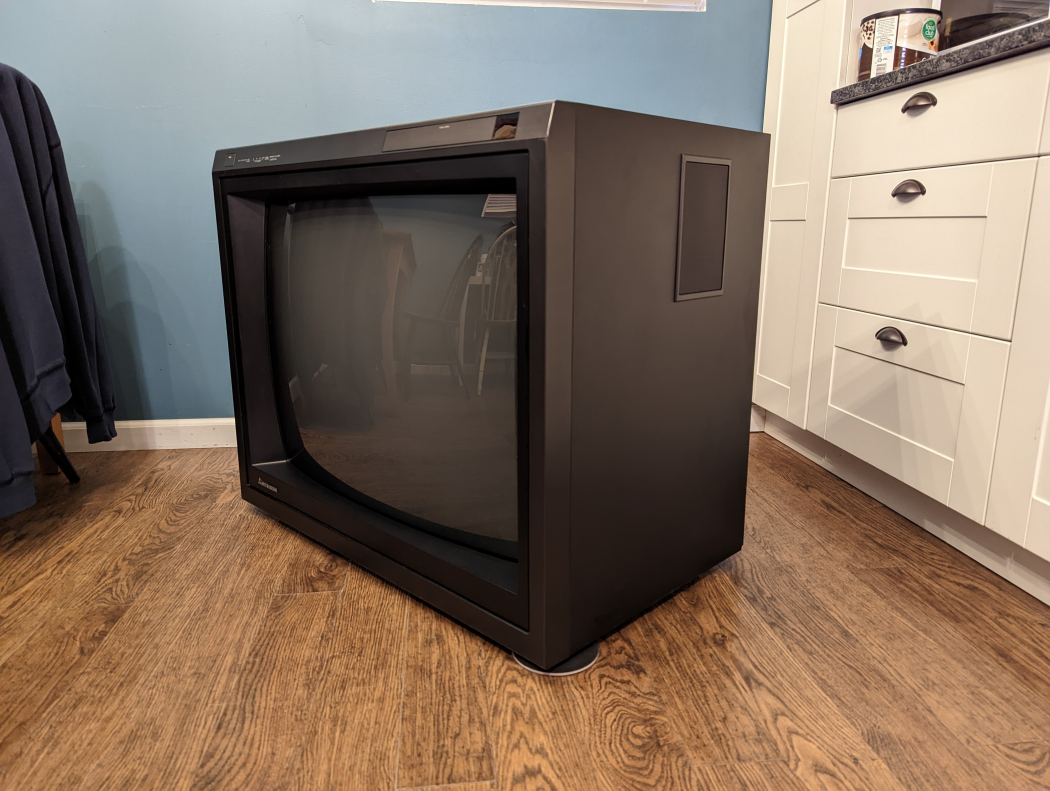

Front/Side Profile

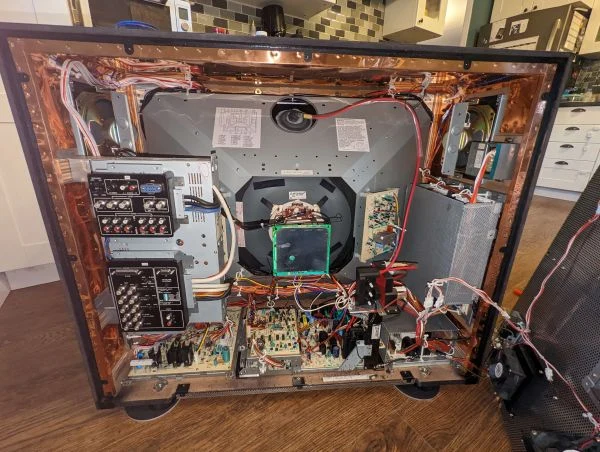

Back view of Internals

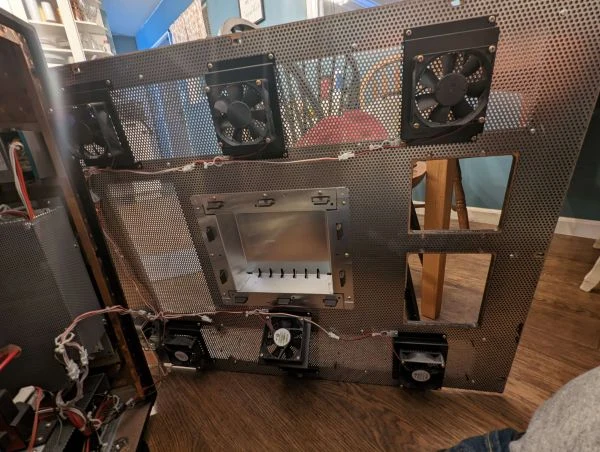

Back Cover/Exhaust Fans

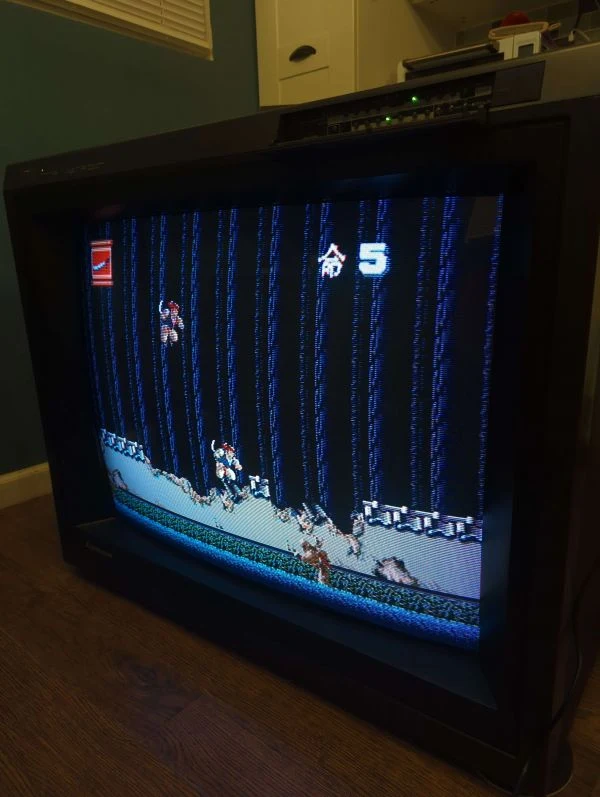

Composite Video example
