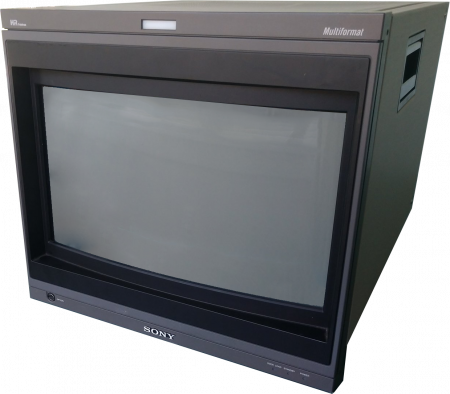

BVM-D20F1U
BVM-D20F1E
BVM-D20F1J
BVM-D20F1A
BVM-D20F1E
BVM-D20F1J
BVM-D20F1A
| Information | ||
|---|---|---|
| Manufacturer | Sony | |
| Type | Professional | |
| Size | 20" | |
| TV Lines | 900 (4:3), 700 (16:9) | |
| Dot Pitch | 0.30mm | |
| Regions | NTSC, PAL, SECAM | |
| 240p/480i | Yes | |
| 480p | Yes | |
| 720p | Yes | |
| 1080i | Yes | |
| Vsync | 50/60hz | |
| Widescreen | No | |
| Composite | 0 | |
| S-Video | 0 | |
| Component | 1x RGB/YPbPr | |
| SDI | 0 | |
| HD-SDI | 0 | |
| Dimensions | Width: 444mm
Depth: 570mm Height: 414mm | |
| Weight | 112 lb 3 oz | |
| Firmware | 1.21 | |
| Earliest Date | May 2003 | |
| Latest Date | August 2005 | |
| Links | ||
| Controller | BKM-10R or BKM-11R | |
| Optional Boards | BKM-20D
BKM-21D BKM-22X BKM-24N BKM-25P BKM-26M BKM-27T BKM-28X BKM-41HD BKM-42HD BKM-48X |
|
| Operation Manual | BVM-D Series Manual | |
| Service Manual | BVM-D20E1WU Manual | |
| Brochure | BVM-D Series Brochure | |
Media
Technical Bulletins
| File Name | Purpose |
|---|---|
| 202000014.pdf | MODIFICATION FOR MULTIPLE FORMATS |
| 202001201.pdf | Caution on CRT replacement |
| 202001214.pdf | New BKM-21D option board |
| 202002107.pdf | SOFTWARE UPGRADE—VERSION 1.20
|
| 202003002.pdf | MANUAL CORRECTION—COLOR TEMP ADJ MENU
|
| 202004093.pdf | FRONT LEDs BLINK AND MONITOR DOES NOT OPERATE
|
| 202004108.pdf | Caution when installing or removing option boards |
| 202004224.pdf | BVM-D20/D24/D32 SERIES MONITOR DOES NOT RECOGNIZE BKM-27T/28X BOARD |
| 202005008.pdf | Parts registration - Handle assembly |
| 202006191.pdf | CRT NECK IS CRACKED |
| 202015068.pdf | Compensation Procedure for Vertical Line |
| 302000043.pdf | MANUAL CORRECTION—PICTURE TUBE |
| 302000077.pdf | CORRECTING UNSTABLE OPERATION |
| 302000104.pdf | PICTURE TRIMMED AT TOP OR LEFT EDGE |
| 302000139.pdf | CORRECTING PICTURE DISTURBANCE AT HD-SDI SWITCH-OVER |
| 302001031.pdf | CORRECTING INTERMITTENT FLUCTUATION OF VERTICAL LINEARITY |
| 302001087.pdf | SPIKE NOISE IN H BLANKING |
| 302002127.pdf | OPERATION MANUAL CORRECTION—ADDITIONAL MENU ITEMS AVAILABLE WHEN USING V1.20 SOFTWARE |
| 302003006.pdf | SOFTWARE UPGRADE—FROM VERSION 1.20 TO VERSION 1.21 ONLY |
| 302003105.pdf | NO POWER WHEN USED WITH PVM-20L/14L MONITORS IN SERIAL REMOTE CONNECTION |
| 302008129.pdf | LED TURNS OFF WHEN CONNECTED IN DAISY-CHAIN CONFIGURATION |
| 302009140.pdf | REUSE ICs WHEN REPLACING BK BOARD |
| 652002007.pdf | Version 1.20 Software Upgrade |
| 302003105.pdf | NO POWER WHEN USED WITH PVM-20L/14L MONITORS IN SERIAL REMOTE CONNECTION |
| 202004224.pdf | BVM-D20/D24/D32 SERIES MONITOR DOES NOT RECOGNIZE BKM-27T/28X BOARD |
| 302008129.pdf | LED TURNS OFF WHEN CONNECTED IN DAISY-CHAIN CONFIGURATION |
| 302003006.pdf | SOFTWARE UPGRADE—FROM VERSION 1.20 TO VERSION 1.21 ONLY |
| 202004108.pdf | Caution when installing or removing option boards |
| 202004093.pdf | FRONT LEDs BLINK AND MONITOR DOES NOT OPERATE
|
| 202006191.pdf | CRT NECK IS CRACKED |
| 302009140.pdf | REUSE ICs WHEN REPLACING BK BOARD |
| 202002107.pdf | SOFTWARE UPGRADE—VERSION 1.20
|
| 302002127.pdf | OPERATION MANUAL CORRECTION—ADDITIONAL MENU ITEMS AVAILABLE WHEN USING V1.20 SOFTWARE |
| 652002007.pdf | Version 1.20 Software Upgrade |
| 202015068.pdf | Compensation Procedure for Vertical Line |
Related Documents
| File Name | Purpose |
|---|---|
| 040008.doc.pdf | HDCAM VTR & BVM-D Monitor Package Deal |
| 040010.doc.pdf | HDW-M2000/1 & BVM-D24E1WU Package Deal |
| 040606.doc.pdf | HD Select Discount Program |
| 040760.doc.pdf | Discontinuation of Select BVM Monitors |
| 050583.doc.pdf | BVM A Series Introduction, BVM D Series Discontinuation |
| 050584.doc.pdf | BVM A Series Introduction, BVM D Series Discontinuation |
| 050585.doc.pdf | BVM A Series Introduction, BVM D Series Discontinuation |
| BKM-20D.pdf | BKM-41HD/42HD Installation Notes |
| BKM-41HDBKM-42HD.pdf | BKM-41HD/42HD Installation Manual |
| Microsoft Word - 050721.doc.pdf | BVM D Series Clearance Sale |
| Microsoft Word - 060218.doc.pdf | BVM and BVM-D Series B Stock Promotional Prices |
| Microsoft Word - 070293.doc.pdf | Introduction to the BVM L230 |
| Microsoft Word - 070294.doc.pdf | Introduction to the BVM L230 |
| Microsoft Word - 070474.doc.pdf | Introduction of the BVM-L230 |
| Microsoft Word - 070475.doc.pdf | Introduction of the BVM-L230 |
| BKM-20DBKM-21DBKM-22XBKM-24NBKM-25PBKM-26MBKM-27TBKM-28X.pdf | BVM D, E, F and G Series Input Card Installation Manual |
| BVM-D24E1WD20F1.pdf | BVM-D32 BVM-D24 BVM-D20 Operation Manual |
| 040082.doc.pdf | Key Model Sell Thru Rebate Program |
| Microsoft Word - 040143.doc.pdf | Rebate Program Terms and Conditions Update |
| Microsoft Word - 040338.doc.pdf | Rebate Program Processing Change |
| Microsoft Word - 040491.doc.pdf | Rebate Program Update #2 |
