| Information | ||
|---|---|---|
| Manufacturer | Sony | |
| Type | Professional | |
| Size | 9" | |
| TV Lines | 450 (4:3), 340 (16:9) | |
| Dot Pitch | 0.25mm | |
| Regions | NTSC, PAL, SECAM | |
| 240p/480i | Yes | |
| 480p | Yes | |
| 720p | Yes | |
| 1080i | Yes | |
| Vsync | 50/60hz | |
| Widescreen | No | |
| Composite | 0 | |
| S-Video | 0 | |
| Component | 1x RGB/YPbPr | |
| SDI | 0 | |
| HD-SDI | 0 | |
| Dimensions | Width: 217mm
Depth: 364.5mm (438mm)[1] Height: 174mm | |
| Weight | 17 lb, 13 oz (19 lb, 9 oz)[2] | |
| Firmware | 1.17 | |
| Links | ||
| Controller | BKM-10R or BKM-11R | |
| Standard Boards | BKM-129X | |
| Optional Boards | BKM-120D BKM-142HD | |
| Operation Manual | BVM-D14/D9 Manual | |
| Service Manual | Sony BVM-D9 Manual | |
| Brochure | BVM-D Series Brochure | |

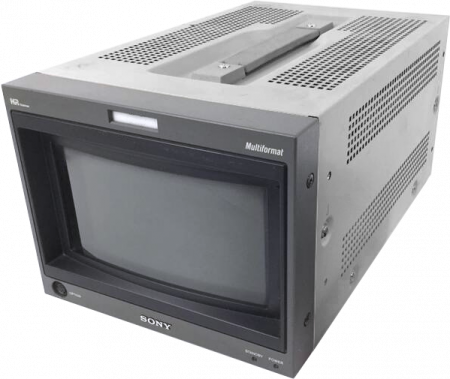

With a 9" screen, this set is meant to be portable for use in-field. The set can use the included AC adapter pack or an optional rechargeable lithium-ion battery pack (BP-L60A or BP-L90A). Other unique features include a built-in kickstand (shown in the picture on this page) as well as an optional hood (VF-508) that hangs over the screen to block glares.
The BVM-D and PVM-L series monitors require a rather rare input board for RGB/YPbPr inputs: the BKM-129X. It is recommended to instead get Martin Hejnfelt's BKM-129X clone (source files) as it is much cheaper and built with modern parts.
Sync Fix
Some video sources, such as a Sega Master System, may have syncing issues. You may be able to fix this by opening the service menu (default password: 53415) and set "H SYNC SEP1" to 0 and "CLP P DLY" to 254 (or to a nearby value where colors look correct).[5]
