PVM-8041Q
PVM-9041QM
PVM-9041QM
| Information | ||
|---|---|---|
| Manufacturer | Sony | |
| Type | Professional | |
| Size | 8" | |
| TV Lines | 250 | |
| Dot Pitch | 0.5mm | |
| Regions | NTSC, PAL, SECAM | |
| 240p/480i | Yes | |
| 480p | No | |
| 720p | No | |
| 1080i | No | |
| Vsync | 50/60 Hz | |
| Widescreen | No | |
| Composite | 2x (Line A/B) | |
| S-Video | 1x (Line A) | |
| Component | 1x RGB/YPbPr | |
| Dimensions | Width: 217mm
Depth: 353mm Height: 217mm | |
| Weight | 17.2lb, 7.8kg | |
| Links | ||
| Service Manual | PVM-8041Q Service Manual | |
| Brochure | PVM-8041Q Brochure | |
Capacitor Lists

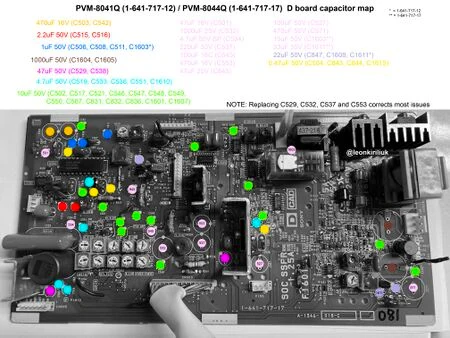

- D Board (CRT chassis) capacitor map created by Leon Kiriliuk:

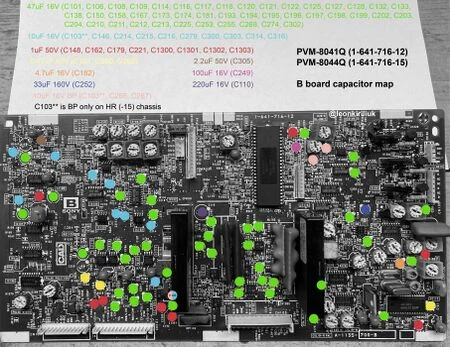

- B Board (video processor) capacitor map created by Leon Kiriliuk:
Media
Technical Bulletins
| File Name | Purpose |
|---|---|
| 201998019.pdf | COLOR DISAPPEARS |
| 201998042.pdf | MOMENTARY HORIZONTAL NOISE |
| 201998152.pdf | FLASHING PICTURE OR IRREGULAR WHITE BALANCE |
| 201999082.pdf | ENHANCED ELECTROLYTIC CAPACITORS |
| 201999147.pdf | RESTORING WHITE BALANCE |
| 301992076.pdf | BATTERY COMPARTMENT PLATE |
| 301992100.pdf | CORRECTING AUDIO JACK DEFORMATION |
| 301993123.pdf | SWITCHING REGULATOR REPLACEMENT |
| 301994016.pdf | TREATMENT OF MULTI FAILURE OF MICRO FUSE |
| 301994088.pdf | CORRECTING CRT FLASHING AND IRREGULAR WHITE BALANCE |
| 301996179.pdf | CORRECTING POOR WHITE BALANCE |
| 301998019.pdf | COLOR DISAPPEARS |
| 301998061.pdf | MOMENTARY HORIZONTAL NOISE |
| 301998184.pdf | FLASHING PICTURE OR IRREGULAR WHITE BALANCE |
| 301999116.pdf | ENHANCED ELECTROLYTIC CAPACITORS |
| 301999196.pdf | RESTORING WHITE BALANCE |
| 301995010.pdf | PARTS REGISTRATION—ORNAMENTAL PLATES |
| 302000239.pdf | NOTES ON MISCONNECTION OF MODELS OPERATING ON EXTERNAL DC POWER SUPPLY |
| 302000230.pdf | REPLACE SCREWS SECURING AC IN SOCKET TO MOUNT AC PLUG HOLDER |
| B-DPMO02-010-0.FM.pdf | PARTS REGISTRATION—PWB FRAME ASSEMBLY |
