TH11-S19R
| Information | ||
|---|---|---|
| Manufacturer | National/Matsushita | |
| Type | Consumer | |
| Tube Series | Quintrix | |
| Size | 11" | |
| Mask | Slot | |
| Regions | NTSC-J | |
| 240p/480i | Yes | |
| 480p | No | |
| 720p | No | |
| 1080i | No | |
| Vsync | 60 Hz | |
| Widescreen | No | |
| Service Method | Internal adjustments | |
| RF | Built-in antenna, external 75 ohm antenna input | |
| Composite | No | |
| S-Video | No | |
| Component | No | |
| Audio Input | No | |
| Audio Output | 3.5 mm mono headphone jack | |
| Mono or Stereo | Mono | |
| Speakers | 1 | |
| Dimensions | Width: 287 mm (11.3") Depth: 340 mm (13.39") Height: 276 mm (10.87") | |
| Weight | 7.0 kg (15 lbs and 6.9 oz) | |
| Input Voltage | 100V AC | |
| Power Consumption | 55W | |
| Earliest Date | 1984 | |
| Latest Date | 1986 | |
| Links | ||
| Remote | TNQ2427 | |

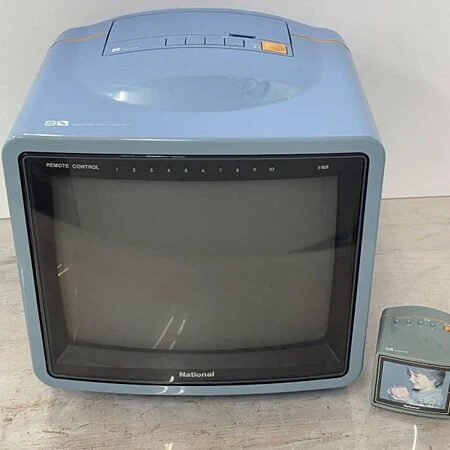

The National TH11-S19R is an 11" CRT produced by Matsushita (later known as Panasonic) and sold under their National brand name in Japan only. It was introduced in 1984 as a successor to the similar TH11-S9, and also came in a variety of colors including black, white, blue, pink, green and yellow. It retailed for 62,800 yen. Unlike the S9, the S19R came with a remote control, which unusually is made in the image of the TV itself. Like many small TVs of the era, it has a built-in antenna and is only limited to RF, featuring a 3.5 mm mono jack for connecting an external antenna. All of the controls are on the top of the set, with the fine tuning dials hidden behind a panel. It also has an integrated rotating stand.
Gallery
-
Various details including the rotating stand -
The manual tuning panel -
The original shipping box -
A green TH11-S19R -
Brochure cover
