Video Output Comparison

All captures are of the composite output and were made using a RetroTINK-5X Pro on default settings with the filter set to "Notch".

1 min readUpdated Oct 9, 2026

All captures are of the composite output and were made using a RetroTINK-5X Pro on default settings with the filter set to "Notch".

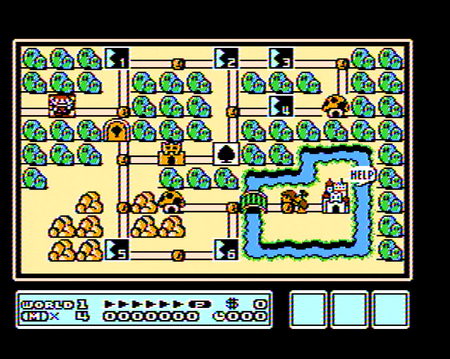

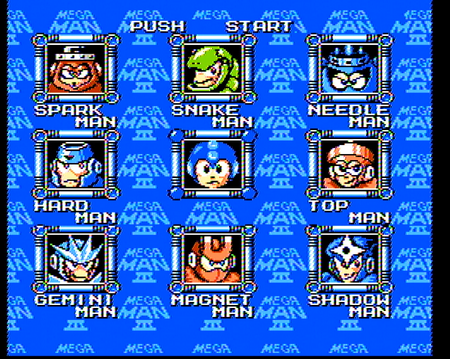

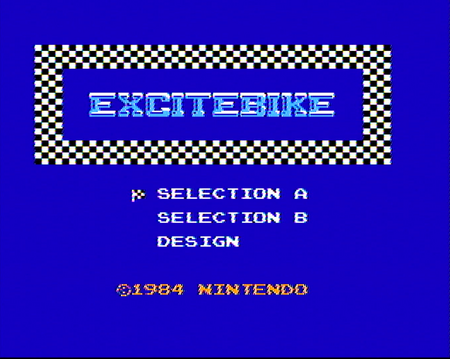

NES-001

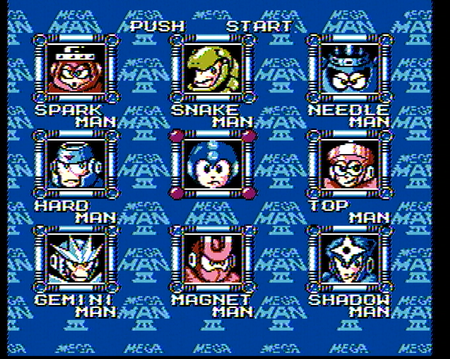

Board Revision Excitebike Title Screen Mega Man 3 Stage Select Super Mario Bros. 3 World 1 Overworld Notes

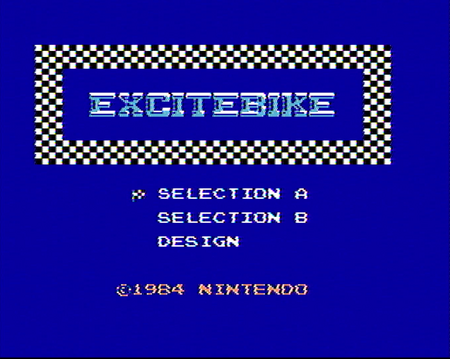

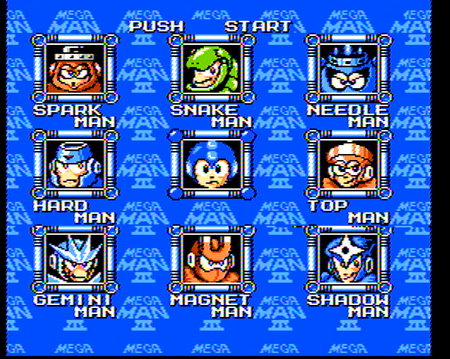

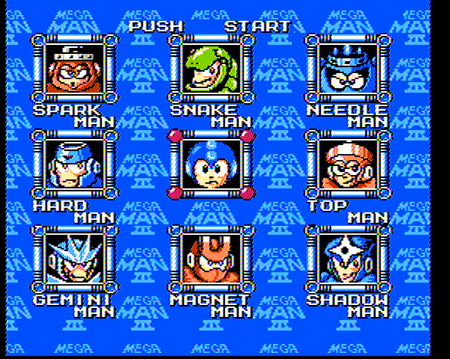

NES-CPU-02
NES-CPU-02 (Fixed)
 Resistor R2 swapped from 2.2k ohm to 510 ohm, which is the same value used in the NES-CPU-05 and beyond

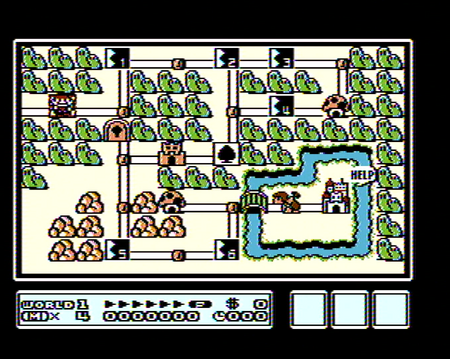

NES-CPU-04

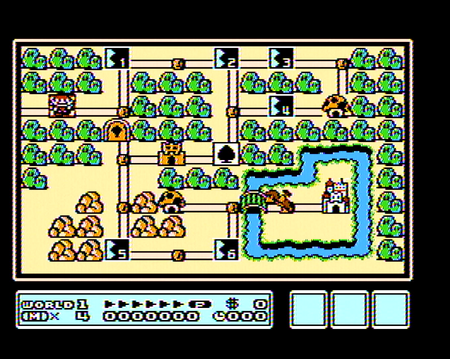

NES-CPU-07
