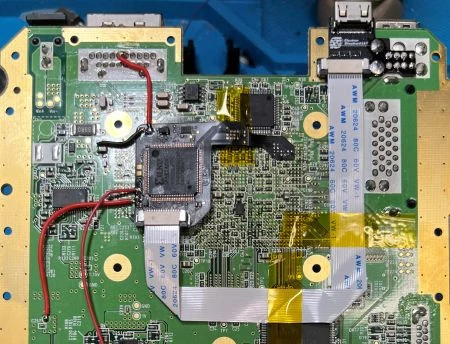

The ElectronAVE (previously known as the AVE-HDMI) is an internal upgrade for the Nintendo Wii, created by Electron Shepherd, that adds a true digital-to-digital HDMI output via a Mini-HDMI connector. The design implements Ingo Korb's GCVideo project. All GCVideo solutions are zero added lag in both analog and digital versions.
AVE-HDMI kits are available directly from https://electron-shepherd.com/collections/all/products/electronave-kit.
Compatibility
The AVE-HDMI is compatible with all Wii revisions, except for the Wii Mini.
Installation
The AVE-HDMI requires modification of the case.
Installation tutorials are available on YouTube by Voultar and SpawnWave respectively.
Troubleshooting Resources
AVE-RVL Pinouts
-
AVE-RVL Revision 1 -
AVE-RVL Revision 2
AVE-HDMI Pinouts
-
AVE-HDMI FPGA Pinout -
AVE-HDMI PTH Signal Map
