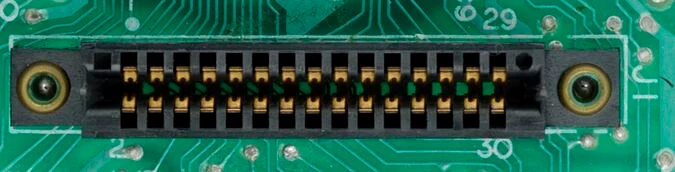

Cartridge Port
This connector has 30 pins and has a pin pitch of 2.54 mm (industry standard).
Note: Odd-numbered pins are towards the back and numbered from left to right, even-numbered pins are towards the front and also numbered from left to right. The table is organized with the front of the connector facing to the left.
| Pin # | Description | Pin # | Description |
|---|---|---|---|
| 2 | Enable Memory Range $C000-$DFFF | 1 | D2 |
| 4 | D3 | 3 | D1 |
| 6 | D4 | 5 | D0 |
| 8 | D5 | 7 | A0 |
| 10 | D6 | 9 | A1 |
| 12 | D7 | 11 | A2 |
| 14 | A11 | 13 | GND |
| 16 | A10 | 15 | A3 |
| 18 | Enable Memory Range $8000-$9FFF | 17 | A4 |
| 20 | A14 | 19 | A13 |
| 22 | Enable Memory Range $A000-$BFFF | 21 | A5 |
| 24 | A12 | 23 | A6 |
| 26 | A9 | 25 | A7 |
| 28 | A8 | 27 | Enable Memory Range $E000-$FFFF |
| 30 | VCC | 29 | GND |
French RGB Connector
This connector is only found on French ColecoVision consoles.
Note: Female is connector at the console. Male is connector at the cable. Diagram pictured is of the connector at the cable end.
| Pin Number | Description |
|---|---|
| 1 | Red |
| 2 | 5V |
| 3 | Green |
| 4 | 12V |
| 5 | Blue |
| 6 | Unused |
| 7 | Composite Sync |
| 8 | GND |
| 9 | Unused |
| 10 | Unused |
| 11 | Unused |
| 12 | Unused |
| 13 | Composite Sync |
| 14 | Unused |
| 15 | Audio Out |
Power Connector
Note: Female is connector at the cable end. Male is connector on the console. Pins are numbered left to right from the console end.
| Pin # | Description | Wire Color |
|---|---|---|
| 1 | 5V DC | White |
| 2 | -5V DC | Blue |
| 3 | 12V DC | Red |
| 4 | GND | Black |
